1．Product Overview

Customized RAL color PVDF prepainted steel sheet is designed for roofing sheets, wall cladding systems, steel structure buildings, and exterior architectural panels requiring long-term weather resistance and stable surface appearance.

The product uses hot dipped galvanized steel or galvalume steel substrate combined with a continuous color coating process. The painted surface improves corrosion resistance, UV durability, and appearance consistency for outdoor applications.

2．Technical Solution

The steel sheet combines galvanized or galvalume substrate with primer and finish coating layers.

Available coating systems include PE, SMP, and PVDF. PVDF coating provides improved UV resistance and outdoor durability for long-term exterior exposure applications.

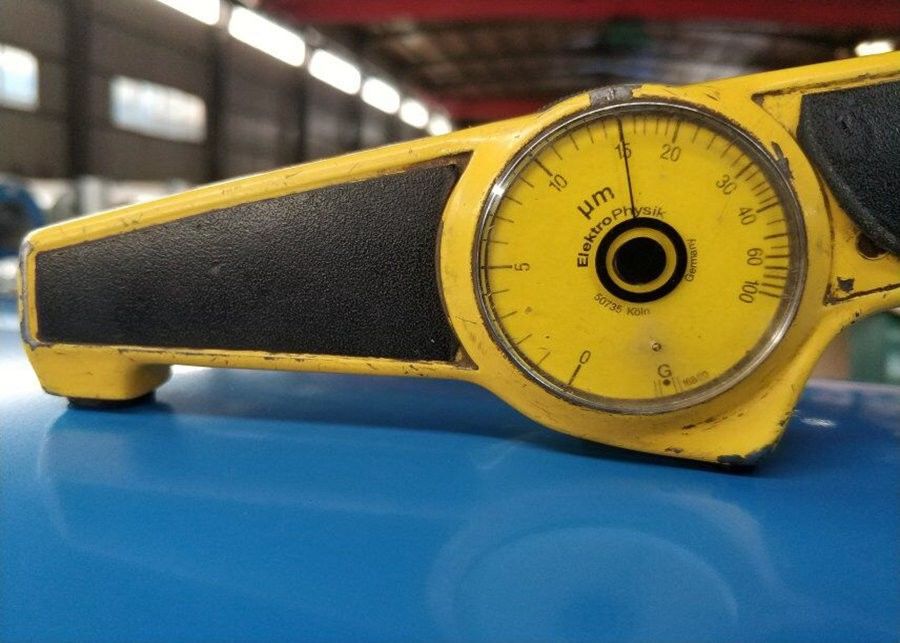

The standard coating structure uses 25±5 micron top coating and 7±2 micron back coating to maintain coating consistency and forming performance during fabrication.

The product supports customized RAL colors for roofing, wall cladding, and architectural panel projects.

3．Specifications

4．Application

This prepainted steel sheet is suitable for roofing sheets, wall cladding panels, steel structure workshops, warehouses, airport buildings, storage facilities, prefabricated buildings, refrigerated containers, home appliance panels, and decorative construction applications.

It is commonly used where the finished product requires stable color consistency, outdoor weather resistance, and corrosion protection.

5．Processing

• The material can be supplied in coil form or processed into cut-to-length sheets.
• It is suitable for roll forming, bending, profiling, roofing sheet production, and wall panel fabrication.
• Protective film can be applied on the top side to reduce surface scratches during transportation and installation.
• Custom slitting and cut-to-length processing are available according to project requirements.

6．Advantages

• The galvanized or galvalume substrate provides stable corrosion resistance for exterior building applications.
• The 0.12–1.00mm thickness range supports mainstream roofing and wall cladding production.
• The 700–1250mm width range is compatible with common roll-forming equipment.
• PE, SMP, and PVDF coating systems support different outdoor service environments.
• PVDF coating provides improved UV resistance and long-term weatherability.
• Customized RAL colors support architectural appearance consistency and project matching requirements.

7．How to Choose

• Choose PE coating for standard roofing sheets and wall panels.
• Choose SMP coating when improved weather resistance is required.
• Choose PVDF coating for projects requiring stronger UV resistance and long-term exterior durability.
• Choose galvanized substrate for standard construction applications.
• Choose galvalume substrate for projects requiring improved heat reflectivity and corrosion resistance.
• Confirm coating type, gloss level, color, protective film, and processing requirements before production.

8．FAQ

Q1．What coating systems are available
PE, SMP, and PVDF coating systems are available.

Q2．Can customized RAL colors be produced
Yes. Customized RAL colors can be supplied according to project requirements.

Q3．What is the available thickness range
The available thickness range is 0.12–1.00mm.

Q4．Is the product suitable for roofing sheet production
Yes. The material is suitable for roofing sheets, wall cladding panels, and roll-formed building products.

Q5．Can protective film be applied
Yes. Protective film can be applied on the top side when required.
