600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel

600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel

  • 600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel
  • 600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel
  • 600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel
  • 600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel
  • 600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel
600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel
Product Details:
Place of Origin: China
Brand Name: Huaye
Certification: ISO14000
Payment & Shipping Terms:
Minimum Order Quantity: 50MT
Packaging Details: standard export packing
Delivery Time: 45 days
Payment Terms: TT or LC
Supply Ability: 100000
Contact Now
Detailed Product Description
Name: Galvanized Steel Corrugated Roof Panel Commodity: Hot Dipped Galvanized Corrugated Roofing Sheet
Thickness: 0.14mm Effective Width: 1050mm
Length: 3800mm Wave Width: 76mm
Height Of Wave: 17mmmm Steel Grade: SGCH(FULL HARD)
Zinc Coating: 30-275g/m2
High Light:

galvanized corrugated roofing sheet

,

galvanized corrugated sheet



600~1250mm Or As Per Your Request 30-275g/m2 Galvanized Steel Corrugated Roof Panel



Name 600~1250mm Or As Per Your Request 30-275g/m2 Galvanized Steel Corrugated Roof Panel
Standard ASTM,DIN,JIS,BS,GB/T
Material DX51D,DX52D,S350GD,S550GD
Thickness 0.12-4.0mm
Width 20-1500mm,Normal width is 914/1000/1219/1250/1500mm
Type of coating process

Front:double coated&double drying;

Back:double coated&double drying;single coated&double drying;
Color

Standard color:red,blue,white,grey

Special color:according to RAL color
Characteristics Weather proof;heating insulation;fireproof;anti-rust;sound insulation;long life span:more than 15 years
Advantages

1.low foundation cost

2.easy construction

3.time and labor saving

4.labor saving
Packing Tied up with steel strips and wrapped with water proof paper
Application

1.construction:prefabricated house,steel house,mobile house,modular house,villa,

bungalow design,portable house/carbin,ready made house,kiosk booths,steel building...

2.container manufacturing

3.household appliances and furniture

4.vehicle and vessel manufacturing

5.others,like machinery structure parts,manufacturing shells of motors and so on
Shipment Within10-15 workdays,25-30days when the quantity beyond 1000tons.







Applications of Galvanized Sheet Metal Roofing:

It is suitable for industrial and civil buildings, warehouse, special construction, large-span steel structure housing the roof, walls and interior and exterior decoration. A lightweight, high strength, color-rich, convenient construction, earthquake, fire, rain, long life, maintenance-free characteristics, has been widely used.

Product Advantage:

Steel housing panels, mobile home panels.
(1) modeling beautiful novel, rich colors, decorative, flexible combination, can express different
(2) light weight (6 ~ 10kg / m2) high strength (yield strength of 250 ~ 550MPa), with good skin stiffness,
 good seismic performance waterproofing agent;
(3) construction easy installation, reducing installation, transportation workload, shorten the construction period;
(4) The pressure plate is environmentally friendly building materials, recyclable, promote the use of steel sheeting line with the policy of sustainable development of the national economy;

Competitive Advantage Of Galvanised Corrugated Steel Roofing Sheets:

. Reliable and stable Quality
. Reasonable Price
. Fast delivery time
. More Than 10 Years export experience


Mill Test Certificate:

　 　 　 　 　 　 　
No.  Heat No. Size:(mm) Quantity Chemical Composition(%) Physical Spec Final
　 　 　 ( MT) C Si Mn P S Tensile strength Enlongation Yield Strength  　
　 　 　 　 (Mpa) (%) (N/mm2) 　
1 120107125 0.376mmx920mmx2500mm 　 0.14 0.02 0.67 0.013 0.012 632 88 600 A
2 120109219 0.315mmx920mmx2500mm 　 0.14 0.02 0.66 0.010 0.015 632 87 600 A
　 　 　 　 　 　 　 　 　 　 　 　 　

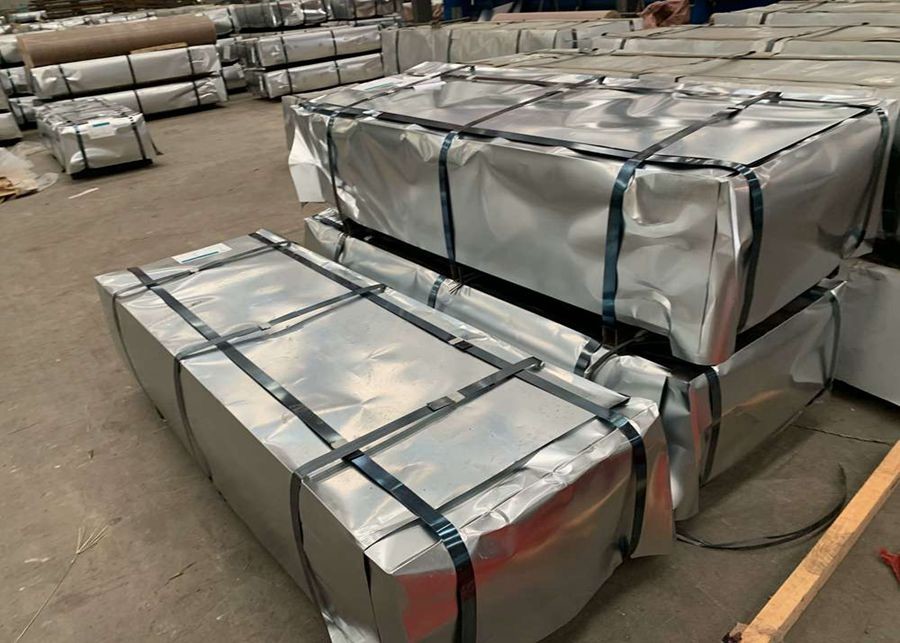

Package Picture Galvanized Corrugated Roofing Sheets

600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel 0　

600~1250mm 30-275g/m2 Galvanized Steel Corrugated Roof Panel 1 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　   　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　

Tag:

galvanized corrugated sheet,

galvanized corrugated roofing sheet,

corrugated sheet roofing
