Titania Coating E6013 J421 Arc Welding Electrode for Carbon Steel Structures

Titania Coating E6013 J421 Arc Welding Electrode for Carbon Steel Structures

1．Product Overview

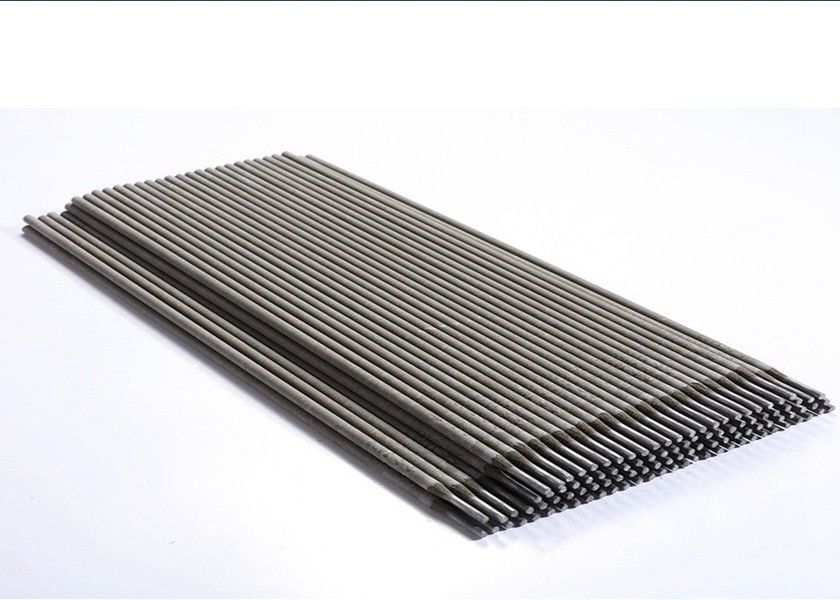

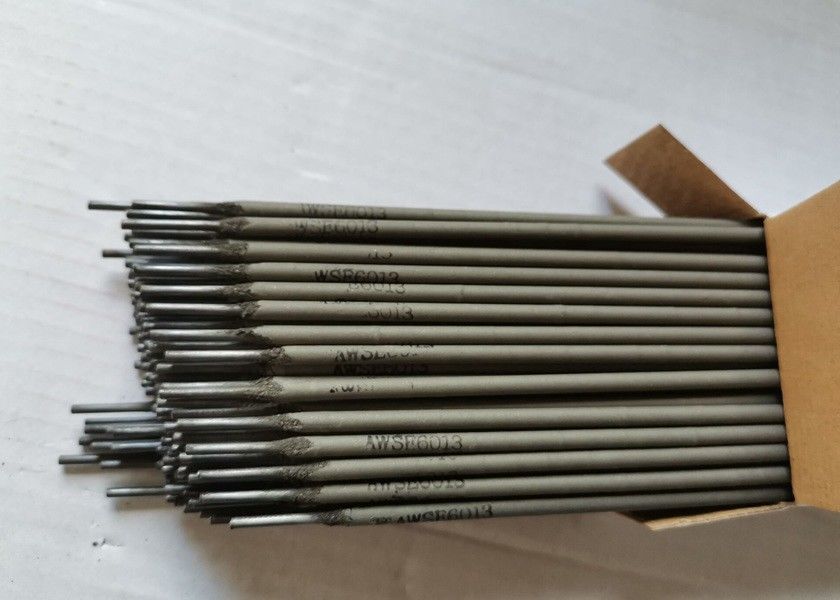

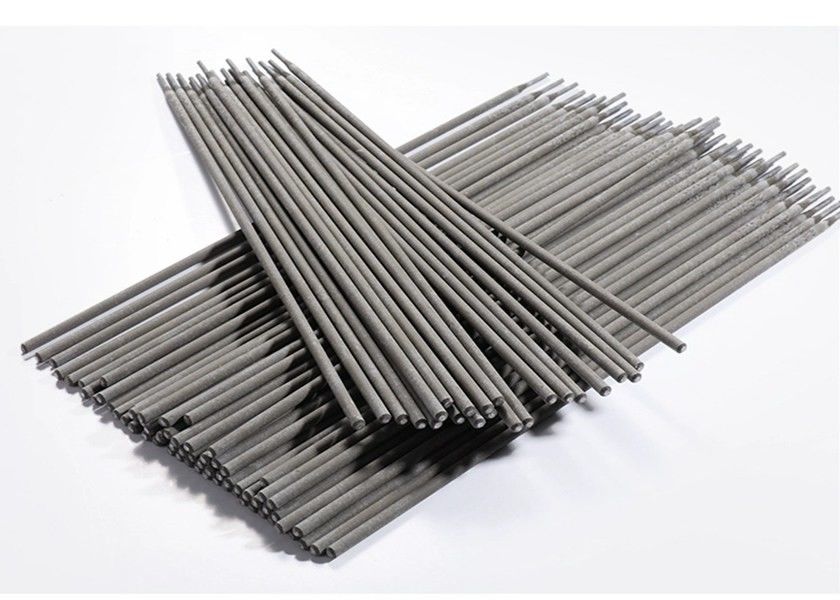

Titania coating E6013 J421 arc welding electrode is a mild steel welding electrode used for low carbon steel structures, thin steel plates, short discontinuous welds, repair welding, and general fabrication work.

J421 is a rutile type carbon steel electrode suitable for AC and DC power sources. It provides stable arc performance, easy re-ignition, low spatter, easy slag removal, and smooth weld appearance for all-position welding.

2．Technical Solution

E6013 / J421 electrode uses titania type coating to improve arc stability and welding operability.

The electrode is suitable for all-position welding, including PA, PB, PC, PD, PE, and PF positions. It can be used with both AC and DC welding machines, making it flexible for workshop fabrication, field installation, repair work, and carbon steel structure welding.

The deposited metal provides controlled carbon, manganese, silicon, sulfur, and phosphorus levels to support stable weld strength and general structural welding performance.

3．Specifications

4．Application

This electrode is suitable for welding low carbon steel structures, thin steel plates, light steel fabrication, machinery parts, building components, repair welding, intermittent welding, and short weld seams.

It is especially suitable for applications requiring smooth weld bead appearance and easy welding operation.

5．Processing

The electrode can be used for all-position welding with AC or DC welding power supply.

In normal storage condition, re-drying is generally not required before welding. If the electrode is affected by moisture, it should be re-dried at 150℃–170℃ for 0.5–1 hour before use.

Before welding, the base metal surface should be cleaned to remove heavy rust, oil, moisture, and other contaminants. Welding current should be selected according to electrode diameter, plate thickness, welding position, and joint design.

6．Advantages

• Titania coating supports stable arc performance and easy operation.
• AC/DC compatibility allows flexible use with different welding machines.
• All-position welding capability supports workshop and field welding work.
• Low spatter and easy slag removal improve welding efficiency and weld appearance.
• Easy re-ignition is suitable for intermittent welding and short weld seams.
• Smooth weld bead appearance is suitable for visible welds and thin plate welding.

7．How to Choose

• Choose E6013 / J421 for low carbon steel structure welding and general fabrication.
• Choose lower welding current for thin plates, short weld seams, and cosmetic welding.
• Choose higher welding current for thicker plates and stronger penetration requirements.
• Choose this electrode when stable arc, easy slag removal, and smooth weld appearance are required.
• Confirm electrode diameter, welding current, welding position, base metal thickness, and project certification requirements before use.

8．FAQ

Q1．What is E6013 J421 used for

It is used for welding low carbon steel structures, thin plates, machinery parts, repair welds, and general fabrication components.

Q2．Can it be used with AC and DC welding machines

Yes. It can be used with both AC and DC power sources.

Q3．Is it suitable for all-position welding

Yes. It supports PA, PB, PC, PD, PE, and PF welding positions.

Q4．Does the electrode need re-drying before welding

Normally it does not need re-drying. If affected by moisture, it should be re-dried at 150℃–170℃ for 0.5–1 hour.

Q5．What packing is available

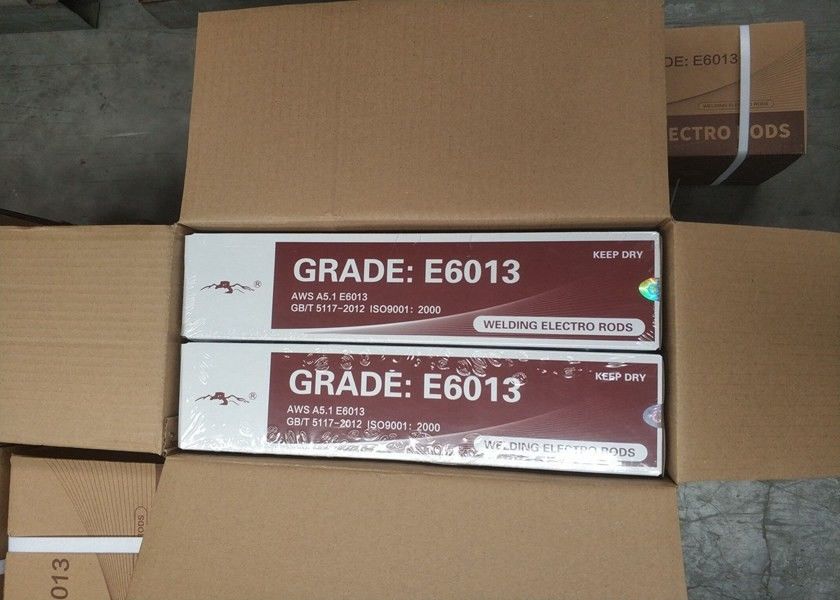

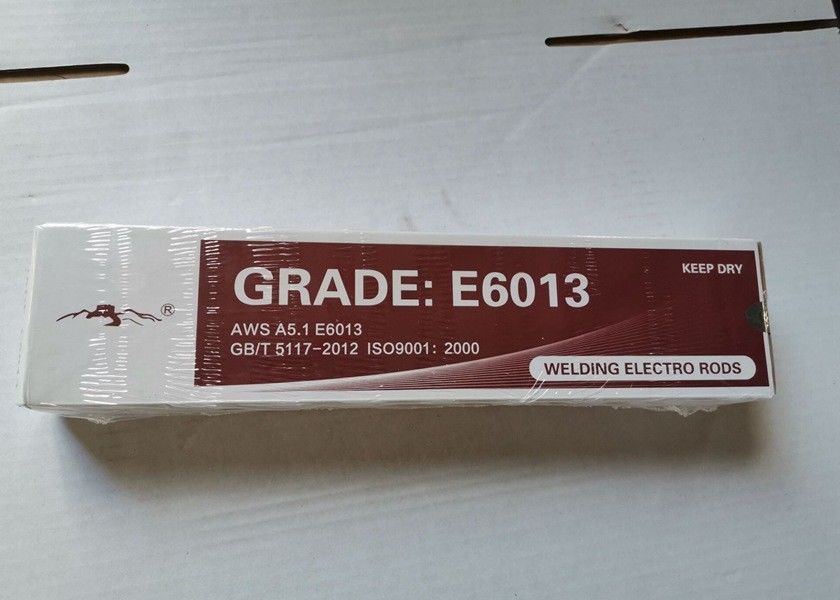

Packing is 2.5kg per box, 8 boxes per carton, and 20kg per carton.
