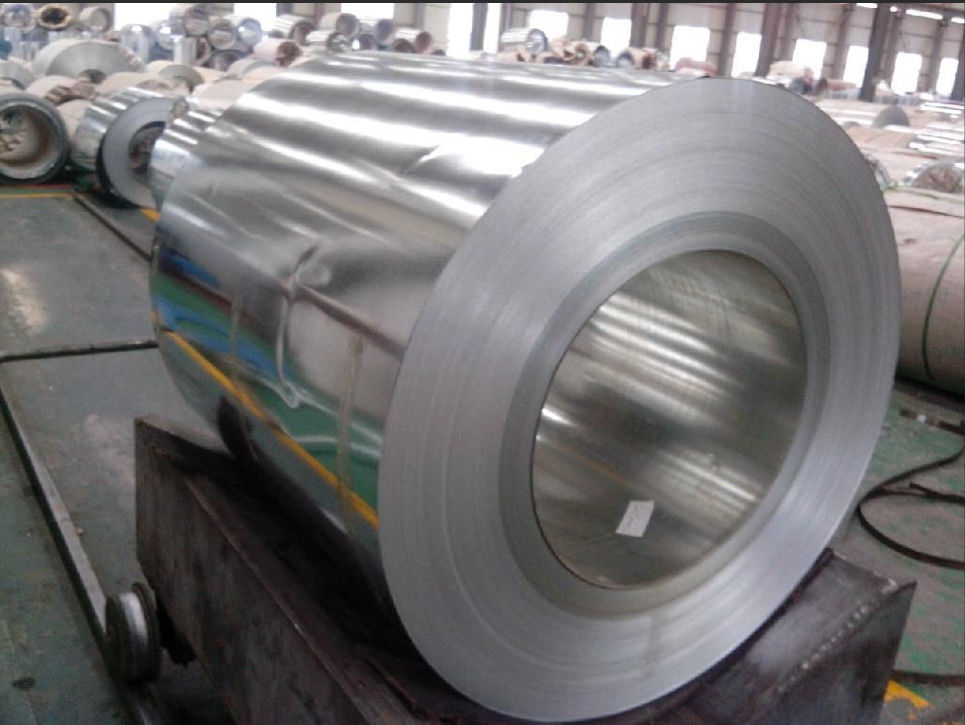

High Formability Hot Dipped Galvanized Steel Coil Z60–Z275 with 12–25% Elongation and 195–420 MPa Yield Strength

1. Product Overview

Hot dipped galvanized steel coils are produced through a continuous hot-dip galvanizing process, forming a stable zinc coating layer on the steel surface. This coating provides both barrier protection and sacrificial protection, improving corrosion resistance under different service conditions.

The combination of 12–25% elongation, 195–420 MPa yield strength, and 270–500 MPa tensile strength makes the material suitable for forming operations as well as structural use. Widths of 1000–1250 mm match standard industrial processing equipment, supporting efficient slitting, roll forming, and cut-to-length production.

2. Technical Solution

Product performance is based on the following technical characteristics:

• Hot dip galvanizing with controlled coating weight (Z60–Z275)
• Zinc coating providing barrier protection and sacrificial protection
• Balanced mechanical properties for forming and structural use
• Uniform coating thickness for stable downstream processing

Elongation of 12–25% supports bending, stamping, and profiling operations, while yield strength of 195–420 MPa provides structural stability during fabrication and service.

3. Specifications

4. Application

• Structural steel components
• Automotive panels and reinforcement parts
• Roofing and wall cladding systems
• HVAC ducts and ventilation systems
• Electrical cabinets and appliance panels
• General sheet metal fabrication

5. Processing

• Slitting into narrow strips
• Cut-to-length sheet production
• Roll forming and bending
• Stamping and drawing
• Surface coating or painting

6. Advantages

• Controlled elongation for stable forming performance
• Balanced strength suitable for structural and industrial use
• Z60–Z275 coating options for different corrosion environments
• 1000–1250 mm width compatible with mainstream production lines
• Multiple surface treatments for storage and further processing

7. How to Choose

• Outdoor environment → select higher coating such as Z200–Z275
• Forming process → prioritize elongation ≥18%
• Structural use → select higher yield strength grade
• Painting requirement → choose chromated or clean surface
• Production line matching → confirm coil ID and coil weight

8. FAQ

Q1: Why is elongation important in galvanized coils?
Elongation affects forming performance and helps reduce the risk of cracking during bending or stamping.

Q2: What coating level is suitable for outdoor use?
Higher coating levels such as Z200–Z275 are typically selected for improved corrosion resistance.

Q3: Can coils be processed into sheets?
Yes, coils are commonly slit or cut into sheets according to downstream processing requirements.

Q4: What coil ID is compatible with standard equipment?
508 mm and 610 mm are standard coil IDs widely used in industrial production lines.

Q5: Is this material suitable for automotive and structural applications?
Yes, the combination of strength and elongation supports both forming-intensive automotive parts and general structural fabrication.
