| Place of Origin: | China |
| Brand Name: | Huaye |
| Certification: | ISO14000 |
| Minimum Order Quantity: | 50 MT |
|---|---|
| Packaging Details: | standard export packing |
| Delivery Time: | 45 days |
| Payment Terms: | TT or LC |
| Supply Ability: | 100000 |
| Commodity: | Long Steel I Beam | Leg Height: | 68~180mm |
|---|---|---|---|
| Depth: | 100mm-630mm | Standard: | AISI, ASTM, BS, DIN, EN, GB, JIS |
| Grade: | S235JR - S355J2 | Application: | Construction |
| High Light: | stainless steel rod,galvanized wire rod |
||

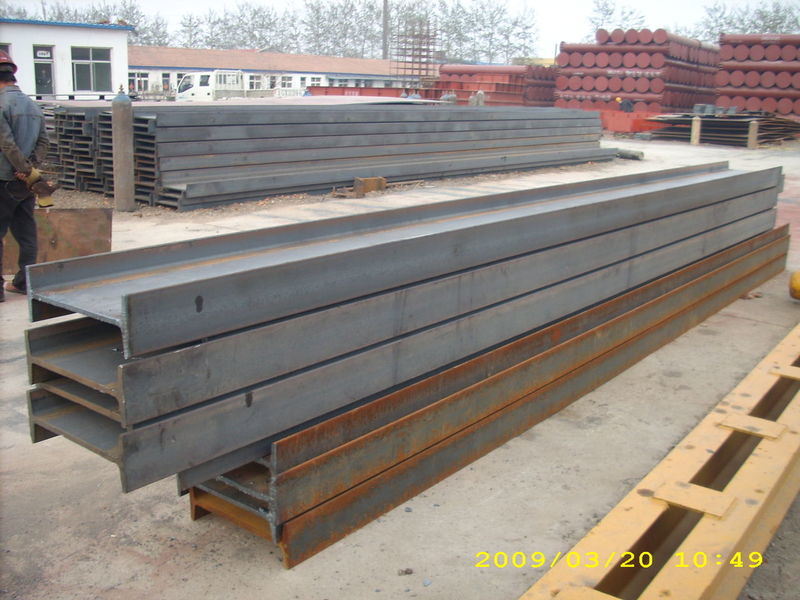

Long Steel I Beam of JIS G3101 SS400, ASTM A36, EN 10025 Mild Steel Products / Produc
As per JIS G3101 SS400, ASTM A36, EN 10025 S275JR, GB700 Q235B, Q345B etc
Length as per customer’s request
Minimum order: 50MT per size
|
EN Standard Model |
Leg Height (mm) |
Waist Depth (mm) |
Leg Depth (mm) |
Theoretical Weight (kg/m) |
|
|
|
|
|
|
|
80 |
50 |
4.5 |
5.5 |
7.52 |
|
80 |
46 |
3.2 |
4.6 |
4.85 |
|
100 |
55 |
3.8 |
5 |
6.72 |
|
120 |
64 |
4.4 |
5.5 |
8.33 |
|
140 |
73 |
3.8 |
5.2 |
10.05 |
|
140 |
73 |
4.7 |
6.9 |
12.9 |
|
160 |
82 |
5 |
7.4 |
15.8 |
|
180 |
91 |
5.3 |
8 |
18.8 |
|
200 |
100 |
5.6 |
8.5 |
22.4 |
|
220 |
110 |
5.9 |
9 |
26.2 |
|
240 |
120 |
6.2 |
9.5 |
30.7 |
|
270 |
135 |
6.6 |
10 |
36.1 |
