１．Product Overview

Non-oriented silicon steel coils are designed for electrical and electromagnetic applications including motors, generators, transformers, compressors, and industrial electrical equipment.

The material is produced according to JIS C2552, ASTM A677M, EN10106, and GB/T2521 standards to provide stable magnetic properties, controlled core loss performance, and consistent thickness for punching and lamination processing.

The 0.35–1.50 mm thickness range and 1200 mm / 1220 mm width configuration support industrial slitting, stamping, and electrical core manufacturing processes.

２．Technical Solution

The product is manufactured through cold rolling and silicon steel processing technology with controlled magnetic performance and dimensional consistency.

Non-oriented grain structure allows magnetic flux transmission in multiple directions, which is suitable for rotating electrical machinery. Different H50W grades are available for balancing iron loss, magnetic induction, and processing requirements.

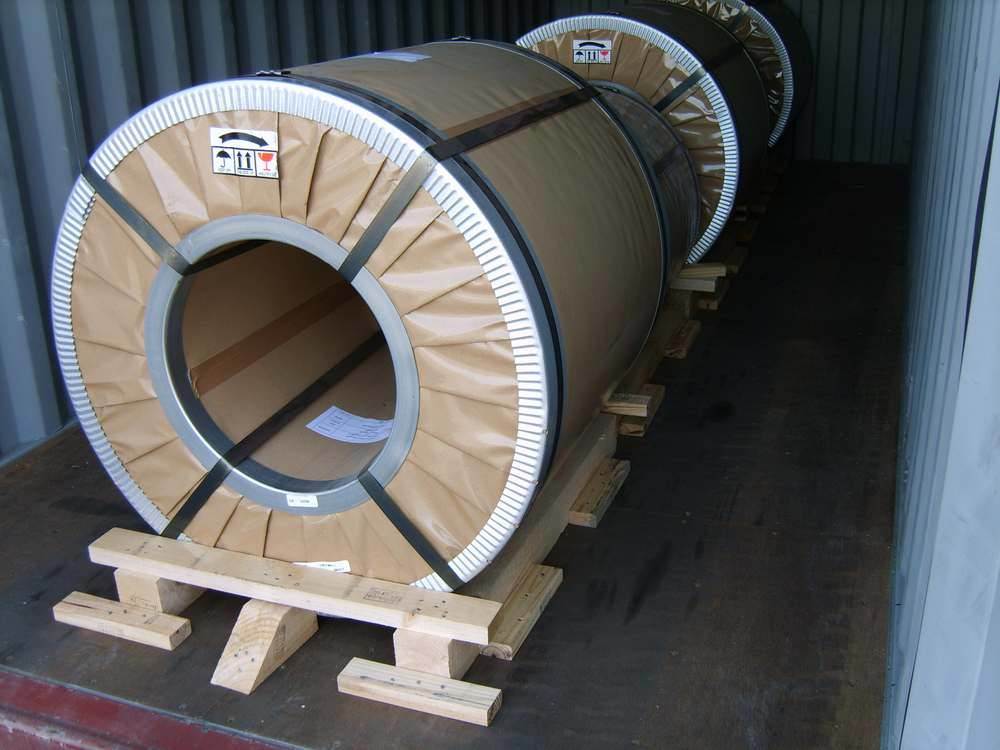

Coils are supplied with controlled coil weight and export packaging for stable transportation and industrial production compatibility.

３．Specifications

４．Application

• Electric motor laminations
• Industrial generators
• Transformer cores
• Compressor motors
• Industrial automation equipment
• Electrical machinery manufacturing
• Magnetic core processing
• Household appliance motors
• High-efficiency rotating electrical equipment

５．Processing

• Slitting into narrow electrical strips
• Motor lamination punching
• Transformer core fabrication
• Precision stamping
• Cut-to-length processing
• Core stacking and assembly
• Electrical component manufacturing

６．Advantages

• 0.35–1.50 mm thickness range supports different magnetic efficiency and mechanical strength requirements.
• 1200 mm and 1220 mm widths support industrial punching and high-volume lamination production.
• Non-oriented silicon steel structure supports multidirectional magnetic flux applications.
• Maximum 10 MT coil weight improves handling compatibility with electrical steel processing lines.
• Multiple international standards support export and industrial project requirements.
• Stable coil dimensions improve punching accuracy and lamination consistency.

７．How to Choose

• For lower iron loss applications, select lower loss grades such as H50W600.
• For general industrial motor production, select medium magnetic loss grades such as H50W800.
• For cost-sensitive electrical applications, select H50W1300 grades.
• For compact electrical equipment, thinner specifications are commonly selected.
• For automated stamping production, confirm coil width and coil weight compatibility.

８．FAQ

Q1: What are the main applications of non-oriented silicon steel coils?

They are commonly used for motors, generators, transformers, and electrical equipment cores.

Q2: What thickness range is available?

The available thickness range is 0.35–1.50 mm.

Q3: What widths are available?

1200 mm and 1220 mm widths are available.

Q4: What is the maximum coil weight?

The maximum coil weight is 10 MT.

Q5: What standards are supported?

JIS C2552, ASTM A677M, EN10106, and GB/T2521 standards are supported.
