Product Details:
Place of Origin: China
Brand Name: Huaye
Certification: ISO14000
Payment & Shipping Terms:
Minimum Order Quantity: 25 MT
Price: $550-600/mt
Packaging Details: standard export packing
Delivery Time: 30 days
Payment Terms: TT or LC
Supply Ability: 100000
Contact Now
Detailed Product Description
Commodity: Galvanized Sheet Coil Thickness: 0.15-3.8mm
Width: 800 -1000/1220/1250/1500mm Spangle: Regular Spangle, Minimized Spangle, Big Spangle And Zero Spangle
Steel Grade: SGCC, SGCD3, SGCE, SGCH(Full Hard), DX51D, DX53D, Q195, SGC490, ASTM A653 Zinc Coating: 40g-275g
Application: Construction Coil Weight: 3-8 Tons For Galvalume Steel Coil
High Light:

cold rolled steel plate


galvanized steel coils

PPGI/HDG/GI/SECC DX51 Zinc Coated Cold Rolled/Hot Dipped Galvanized Steel Coil

Quick Detial for Hot Dipped Galvanized Coil:


1. Thickness: 0.15-3.8mm

2. Width: 800 -1000/1220/1250/1500mm

3. Spangle: regular spangle, minimized spangle, big spangle and zero spangle

4. Inner diameter: 508mm or  610mm

5. Double size galvanized 60-275g /m2

6. Surface treatment:Passivated(chromated), oiled or anti-finger treatment(Acrylic coating)

7 Steel Grade:SGCC, SGCD3, SGCE, SGCH(Full hard), DX51D, DX53D, Q195, SGC490, ASTM A653

8. Standard: JIS G3302, ASTM A653, EN 10147

9. Package: with edge protector, steel hoop and seals, Export wrapped ID and OD protection or as per customers' requirements

10. Cutting and slitting can be requested as customer's designation


1 Thickness 0.15mm - 4.00mm
2 Width 11mm-1500mm
3 Zinc Coating Z80 - Z600/m2
4 Surface treatment Chromated, dry or oiled, cr3 treated.
5 CID 508 or 610mm
6 Standard ANSI, ASTM, BS, EN, JIS, GB
7 Grade DX51D, SGCC, Cs-B, S280, S320, S350, S380, DQ, DDQ , Q195
8 Technique Hot dipped, hot rolled, cold rolled
9 Brand MDS
10 Spangle: Regular, Samll , Big or Zero
11 Skinnpassed If required
12 Tension levelling Continuously Hot Dip Galvanized Strips
13 Enduse Profiles, purlins and other basic constructual enduses


Contact:  sales@wxhy.com.cn

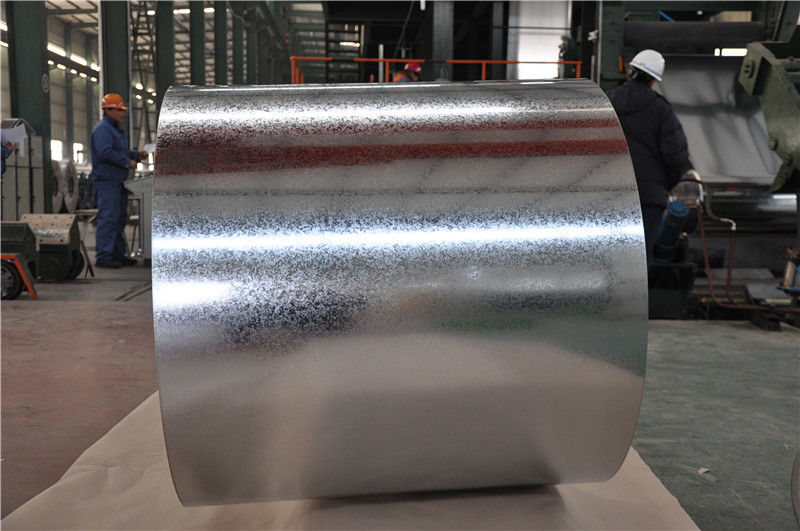

Photos for Hot Dip Galvanized Steel Coil


PPGI/HDG/GI/SECC DX51 Galvanized Steel Roll 0

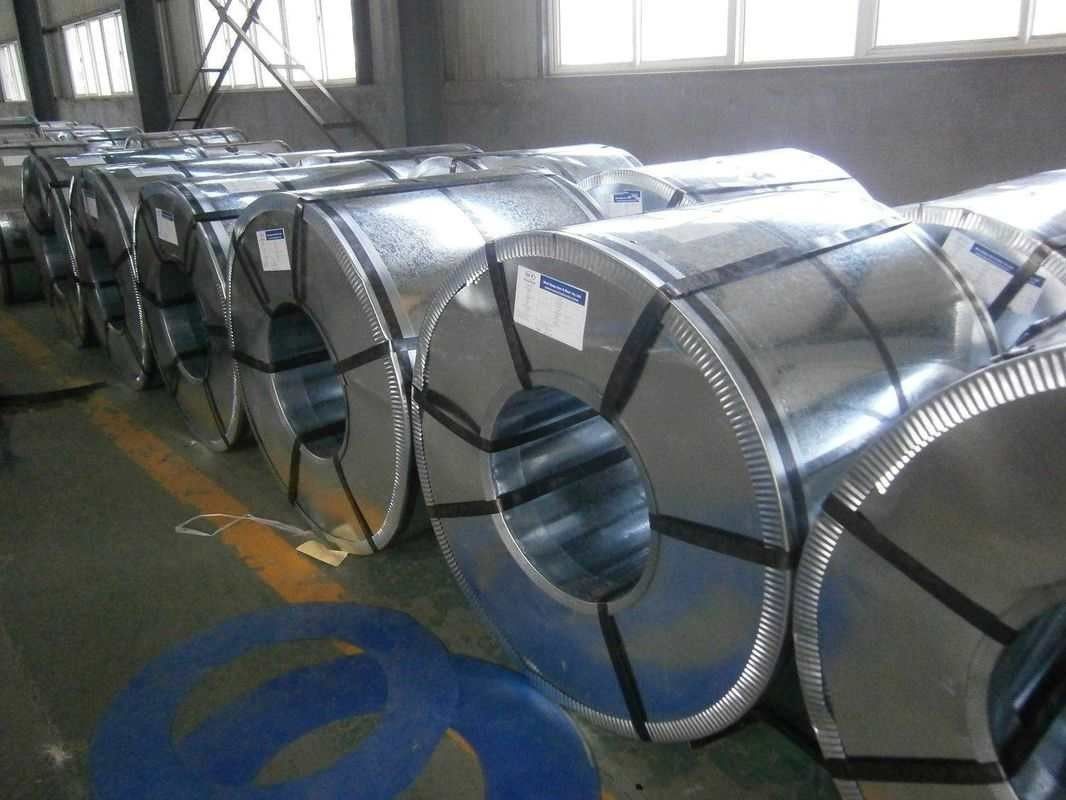

Photos for hot dip galvanized steel coil


PPGI/HDG/GI/SECC DX51 Galvanized Steel Roll 1



Applications of gi steel coil:


1. Construction: roof and roof component, outside walls of civilian and industrial buildings, garage doors and window blinds.

2. Houshold appliances: washing machine, refrigerator, television, air conditioner and ventilation system, Vacuum cleaner, solar water heater.

3. Transportation: car ceiling, auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, the ship bulkhead, highway fence.

4. Industry: industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine.

5. Furniture: lampshade, counter, signboard and medical facility etc.

Mill Test Certificate:(JIS G 3302 SGCH)


          Physical Spec
No. Heat No. Size(mm) Quantity Chemical Composition(%) Final
      MT C Si Mn P S Tensile strength Enlongation Yield Strength(N/mm2)
        (Mpa) (%)
1 121208102 0.14MM X 750MM X COIL   0.05 0.02 0.33 0.014 0.015 650 15 550 A
2 121208208 0.15MM X 750MM X COIL   0.06 0.03 0.32 0.015 0.019 660 17 558 A
3 121208214 0.20MM X 750MM X COIL   0.06 0.03 0.34 0.020 0.021 655 16 560 A
4 121208216 0.30MM X 750MM X COIL   0.08 0.02 0.40 0.016 0.017 660 17 568 A

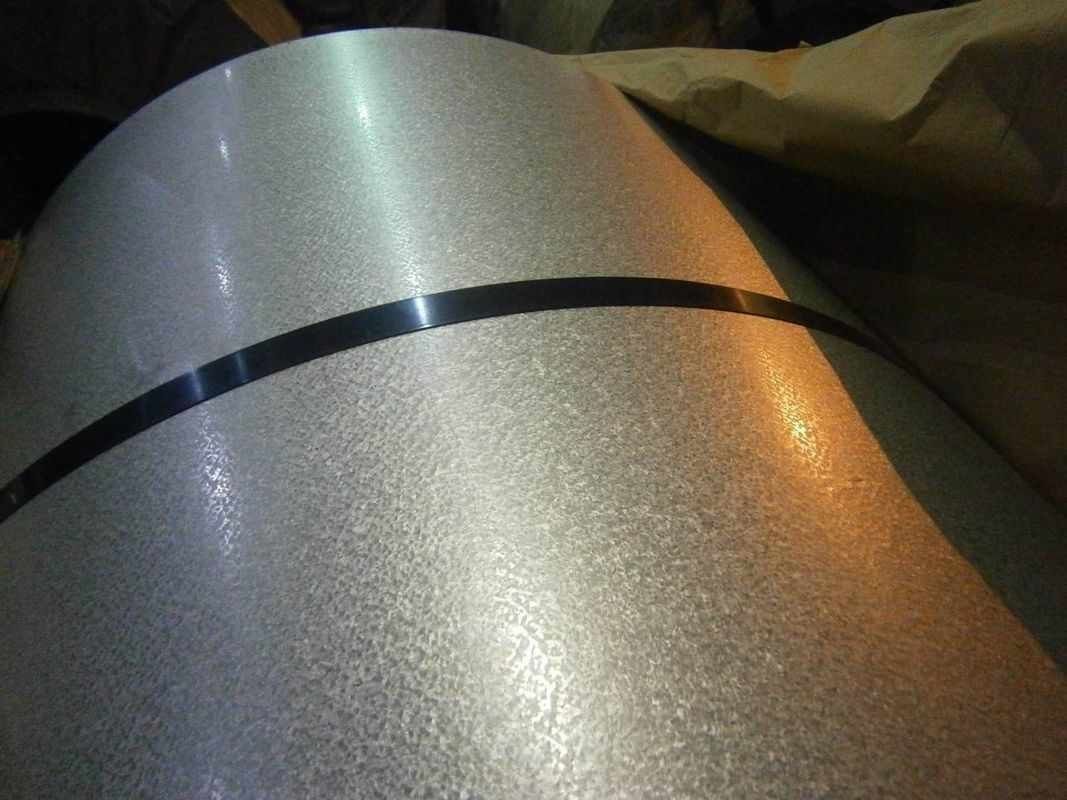

Competitive Advantage of galvanized steel roll:

PPGI/HDG/GI/SECC DX51 Galvanized Steel Roll 2

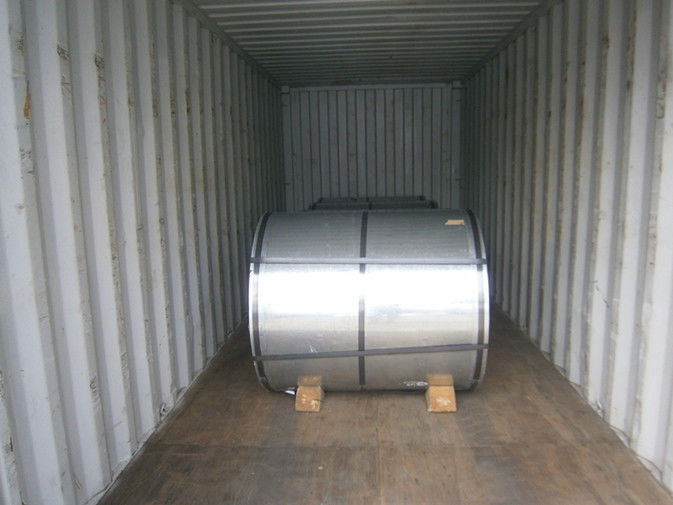

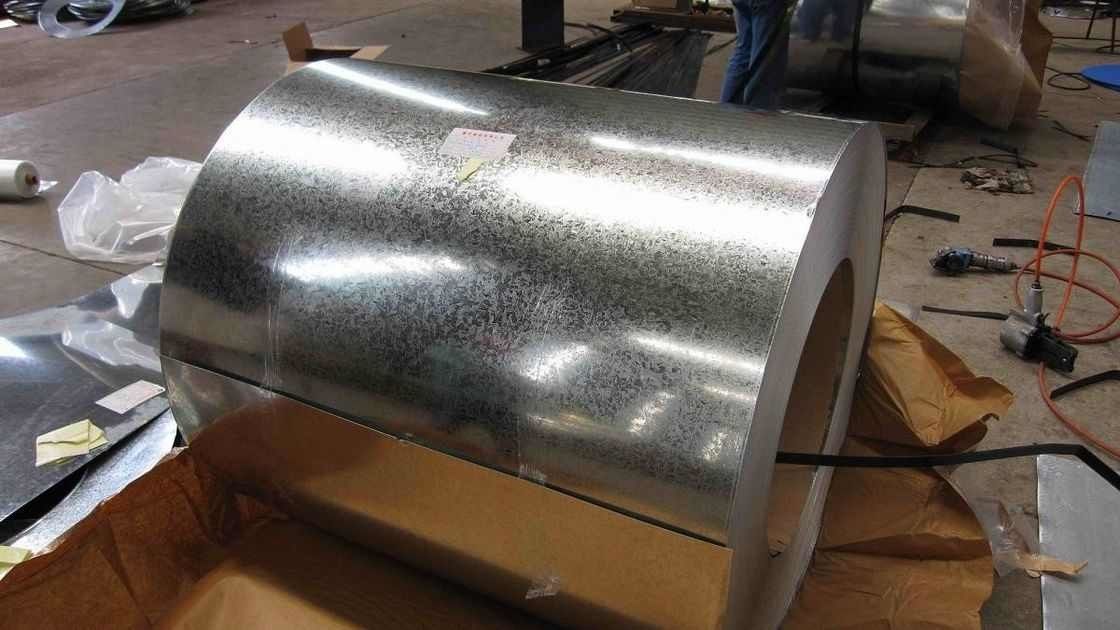

Packing pictures:

PPGI/HDG/GI/SECC DX51 Galvanized Steel Roll 3
