Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils

Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils

  • Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils
  • Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils
  • Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils
  • Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils
Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils
Product Details:
Place of Origin: China
Brand Name: Huaye
Certification: ISO14000
Payment & Shipping Terms:
Minimum Order Quantity: 50 MT
Packaging Details: standard export packing
Delivery Time: 45 days
Payment Terms: TT or LC
Supply Ability: 100000
Contact Now
Detailed Product Description
Commodity: Prepainted Color Steel Coils / Coil Color: White, Black, Sky Blue, Bright Red, Yellow Or Customized As Per RAL Color
Thickness: 0.2-1.2mm Width: 700-1250mm
Inner Diameter: 508mm, 610mm Standard: JIS, CGCC
Packing: Standard Export Packing Application: Container Plate/Construction/roofing Sheet/home Appliance
High Light:

colour coated steel coils

,

hot rolled steel coils

custom cut white, black, sky blue JIS, CGCC PPGI Prepainted Color Steel Coils / Coil
PPGI (PPGL) Features:

Soft commercial quality or Lock forming quality(LFQ)

1 Thickness: 0.2-1.2mm

2 Width: 700-1250mm

3 Inner diameter: 508mm, 610mm Standard: JIS, CGCC

4 Plate:hot dipped galvanized plate or galvalume steel plate

5 Categories of paint: polyester, silicon modified polyester, fluoropolymer paint

6 Color: white, black, sky blue, bright red, yellow or customized as per RAL color

7 Packing: standard export packing

8 With protective film on the top side of color coated sheet or coil.

9 Applications: buildings, vehicles, ships, mechanical and electrical equipment, electrical household appliance.

10 Cutting and slitting can be requested as customer's designation



COMMODITY:   PRE-PAINTED ZINC STEEL SHEET                   Contract NO. HYEXP2010-07-10A Date: SEPTEMBER-17-2010
Steel Grade:  ACC JIS G3312, SOFT MATT         Condition of Supply  PRE-PAINTED ZINC STEEL SHEET
Certificate NO.
100710A
No. Heat No. Size(mm) Zinc Coating: Color side A           Coat property      Steel property
               Pain thick                             (μm)                 T-Bend               (T)                Impact                     (J)                                       Gloss         (GU)                     Pencil hard            YS.             Re          Mpa            UTS.                  Rm              Mpa                 EL.                           A %
1 0710225 0.30X800 MM RAL5012 Z-60 RAL 5012/25 microns 25 3 9 50 3H 360 380 35
2 0710296 0.30X800 MM RAL8004 Z-60 RAL 8004/25 microns 25 3 9 55 3H 365 373 37
3 0710246 0.25X800 MM RAL5012 Z-60 RAL 5012/25 microns 25 3 9 50 3H 358 375 36
4 0710288 0.25X800 MM RAL8004 Z-60 RAL 8004/25 microns 25 3 9 55 3H 355 368 36



Product advantage:

1.Non-pollution
2.Weatherability
3.Corrosion resistance
4.Long service life

Application:

1.Construction:roof for steel structure workshop,airport,storeroom
2.Shipbuilding industry
3.Vehicle manufacturing
4.Furniture industry
5.Electric industry etc.

Competitive Advantage:

 1.Reliable and stable Quality
 2.Reasonable Price
 3.Fast delivery time
 4.More Than 10 Years export experience

Product pictures:

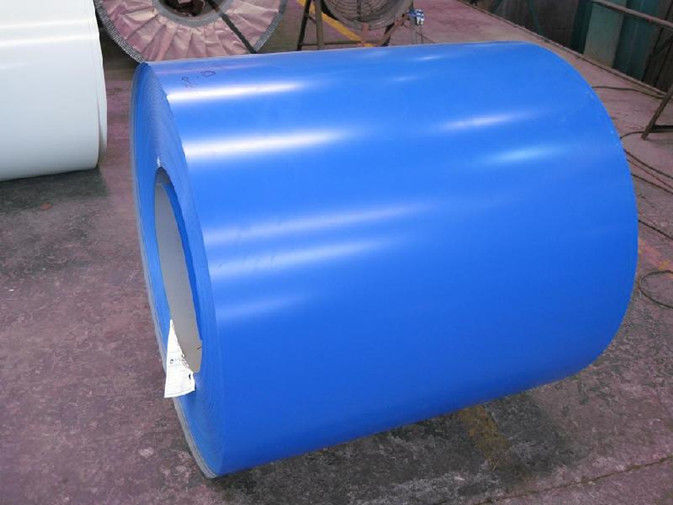

Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils 0

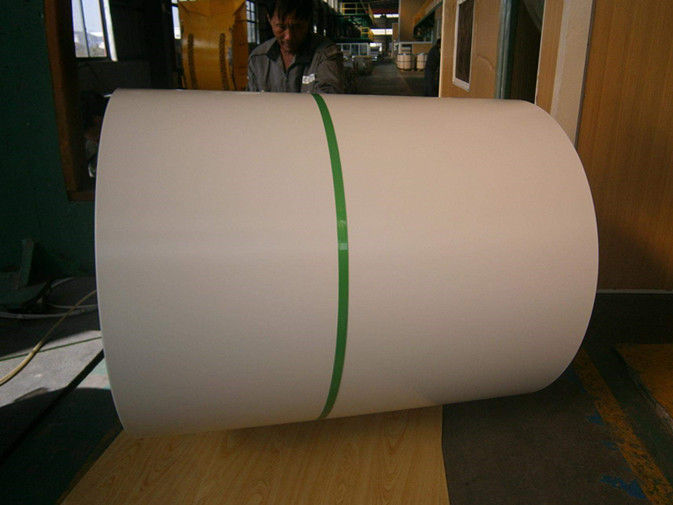

Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils 1

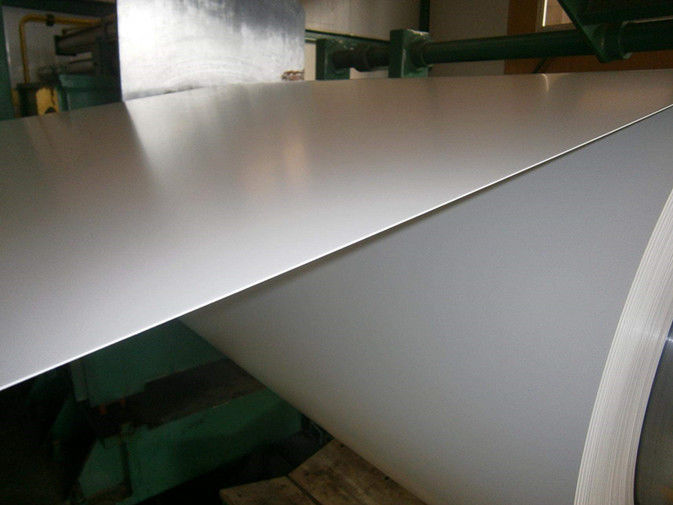

Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils 2

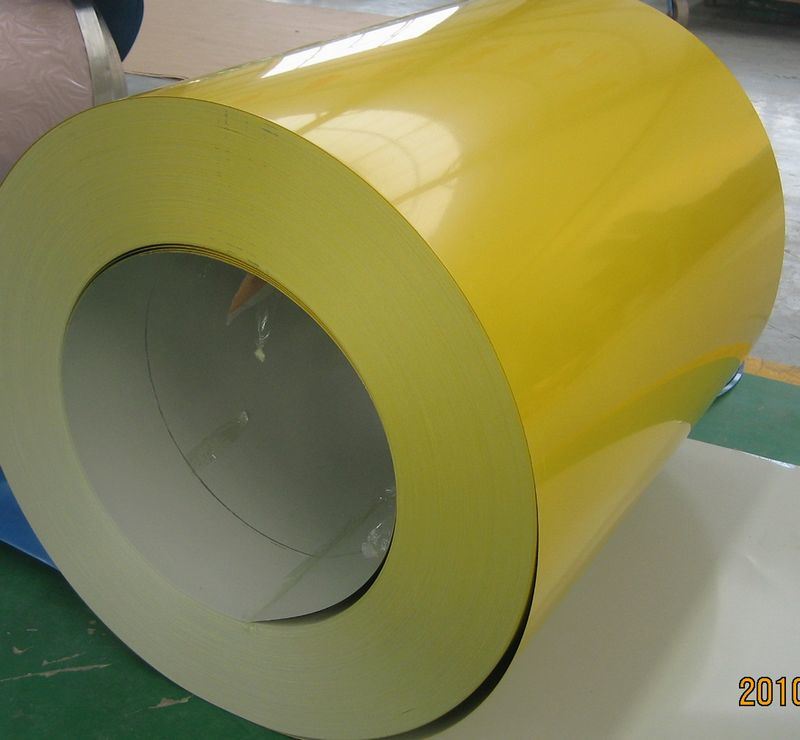

Custom Cut White, Black, Sky Blue JIS, CGCC PPGI Prepainted Color Steel Coils 3
