Color Coated Galvalume Corrugated Steel Roof Sheets 50–180g/m² for Building Materials

Color Coated Galvalume Corrugated Steel Roof Sheets 50–180g/m² for Building Materials

1．Product Overview

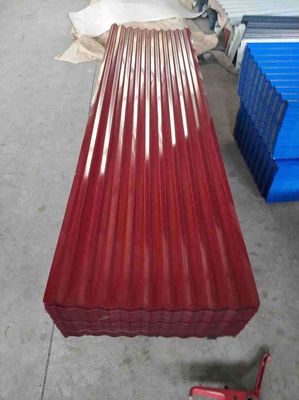

Color coated galvalume corrugated steel roof sheets are used for roofing, wall cladding, steel structure buildings, warehouses, workshops, and general building material applications.

The product uses hot dipped galvalume steel as the substrate and an organic color coating system on the surface. The corrugated profile improves sheet rigidity and drainage performance, while the coated surface provides color consistency and outdoor weather resistance.

2．Technical Solution

The sheet is produced from galvalume steel substrate with 50–180g/m² coating. After surface coating, it is roll formed into corrugated roofing profiles.

The top surface uses 15–20 micron polyester plus 5 micron primer. The back surface uses 5–7 micron or 7–8 micron polyester plus 5 micron primer.

Available paint systems include PE, SMP, and PVDF. PE is suitable for standard building use, SMP is used for improved weather resistance, and PVDF is selected for stronger UV resistance and longer exterior service.

3．Specifications

4．Application

This product is suitable for roofing sheets, wall panels, steel structure buildings, warehouses, workshops, commercial buildings, industrial buildings, and general construction projects.

It can also be used for building envelope systems where lightweight installation, corrosion protection, and stable color appearance are required.

5．Processing

• Sheets can be supplied according to required project length.
• Different effective widths and wave profiles can be arranged according to roofing layout.
• The product supports cutting, stacking, bundling, and export packing.
• Customized RAL colors can be produced according to project requirements.

6．Advantages

• The galvalume substrate provides stable corrosion protection for roofing and wall cladding.
• The 50–180g/m² coating range supports different outdoor exposure environments.
• The corrugated profile improves sheet rigidity and roof drainage performance.
• PE, SMP, and PVDF coating systems support different weather resistance requirements.
• Effective width options are suitable for common roofing installation layouts.
• Customized colors help match architectural design requirements.

7．How to Choose

• Choose PE coating for standard roofing and wall cladding applications.
• Choose SMP coating when better weather resistance is required.
• Choose PVDF coating for higher UV exposure and longer exterior service.
• Choose higher coating levels for humid, coastal, or industrial environments.
• Choose sheet thickness according to roof span, wind load, and required panel rigidity.
• Confirm effective width, length, wave profile, color, and packing method before production.

8．FAQ

Q1．What is this product used for
It is used for roofing sheets, wall cladding, warehouses, workshops, steel structure buildings, and general construction projects.

Q2．What coating systems are available
PE, SMP, and PVDF coating systems are available.

Q3．Can customized colors be supplied
Yes. Colors can be produced according to RAL Card or customer-approved samples.

Q4．What is the available coating range
The available coating range is 50–180g/m².

Q5．Can the wave profile be customized
Yes. Standard wave width is 76mm and wave height is 17mm, and customized profiles can be discussed according to project requirements.
