| Place of Origin: | China |
| Brand Name: | Huaye |
| Certification: | ISO14000 |
| Minimum Order Quantity: | 50 MT |
|---|---|
| Packaging Details: | standard export packing |
| Delivery Time: | 45 days |
| Payment Terms: | TT or LC |
| Supply Ability: | 100000 |
| Commodity: | Prepainted Color Steel Coils / Coil | Color: | White, Red, Blue Or Customized As Per RAL Color Card |
|---|---|---|---|
| Thickness: | 0.20mm To 1.0m | Width: | 750mmto 1250mm |
| Zinc Coating: | Z60 To Z27 (120g/m2 To 275g/m2, Double Sides). | Surface Color: | Refer To RAL |
| Annual Production: | 100, 000 MT/year | Paint Type: | Polyester/SMP/PVDF |
| Application: | Container Plate/Construction/roofing Sheet/home Appliance | ||
| High Light: | hot rolled steel coils,galvanzied steel sheet |
||
custom cut white, black, sky blue JIS, CGCC PPGI Prepainted Color Steel Coils / Coil
PPGI (PPGL) Features:
Soft commercial quality or Lock forming quality(LFQ)
1 Thickness: 0.2-1.2mm
2 Width: 700-1250mm
3 Inner diameter: 508mm, 610mm Standard: JIS, CGCC
4 Plate:hot dipped galvanized plate or galvalume steel plate
5 Categories of paint: polyester, silicon modified polyester, fluoropolymer paint
6 Color: white, black, sky blue, bright red, yellow or customized as per RAL color
7 Packing: standard export packing
8 With protective film on the top side of color coated sheet or coil.
9 Applications: buildings, vehicles, ships, mechanical and electrical equipment, electrical household appliance.
10 Cutting and slitting can be requested as customer's designation
| COMMODITY: | PRE-PAINTED ZINC STEEL SHEET | Contract NO. | HYEXP2010-07-10A | Date: | SEPTEMBER-17-2010 | ||||||||||||||||
| Steel Grade: | ACC JIS G3312, SOFT MATT | Condition of Supply | PRE-PAINTED ZINC STEEL SHEET | Certificate NO. |
100710A | ||||||||||||||||
| No. | Heat No. | Size(mm) | Zinc Coating: | Color side A | Coat property | Steel property | |||||||||||||||
| Pain thick (μm) | T-Bend (T) | Impact (J) | Gloss (GU) | Pencil hard | YS. Re Mpa | UTS. Rm Mpa | EL. A % | ||||||||||||||
| 1 | 0710225 | 0.30X800 MM RAL5012 | Z-60 | RAL 5012/25 microns | 25 | 3 | 9 | 50 | 3H | 360 | 380 | 35 | |||||||||
| 2 | 0710296 | 0.30X800 MM RAL8004 | Z-60 | RAL 8004/25 microns | 25 | 3 | 9 | 55 | 3H | 365 | 373 | 37 | |||||||||
| 3 | 0710246 | 0.25X800 MM RAL5012 | Z-60 | RAL 5012/25 microns | 25 | 3 | 9 | 50 | 3H | 358 | 375 | 36 | |||||||||
| 4 | 0710288 | 0.25X800 MM RAL8004 | Z-60 | RAL 8004/25 microns | 25 | 3 | 9 | 55 | 3H | 355 | 368 | 36 | |||||||||
750mm - 1250mm Z60 to Z275 Zinc coating Red / Blue Prepainted Color Steel Coils / Coil:
Main specification:
Thickness: 0.20mm to 1.0m
Width: 750mmto 1250mm
Zinc coating: Z60 to Z27 (120g/m2 to 275g/m2, double sides).
Surface color: refer to RAL
Annual production: 100, 000 MT/year.
| No. | Heat No. | Size | Chemical Composition(%) | Physical Spec | Final | |||||
| C | Mn | P | S | Tensile strength | Enlongation | Yield Strength(N/mm2) | ||||
| (Mpa) | (%) | |||||||||
| 1 | 130102135 | 0.35MM X 914MM X C | 0.05 | 0.20 | 0.013 | 0.015 | 568 | 10 | 555 | A |
| TOTAL | ||||||||||

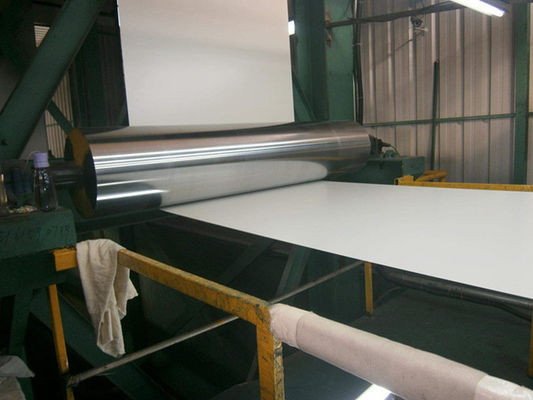

Product picture of color coated coil:
