CGCC, DX51D Zinc Coating white, red, blue PRE PAINTED Corrugated Steel Roof Sheets

CGCC, DX51D Zinc Coating white, red, blue PRE PAINTED Corrugated Steel Roof Sheets

CGCC, DX51D Zinc Coating white, red, blue PRE PAINTED Corrugated Steel Roof Sheets
CGCC, DX51D Zinc Coating white, red, blue PRE PAINTED Corrugated Steel Roof Sheets

Product Details:

Place of Origin: China
Brand Name: Huaye
Certification: ISO14000

Payment & Shipping Terms:

Minimum Order Quantity: 50MT
Packaging Details: Standard export packing
Delivery Time: 45 days
Payment Terms: T/T or L/C
Supply Ability: 10000MT
Contact Now
Detailed Product Description
Commodity: PRE PAINTED Corrugated Steel Roof Sheets Steel Grade: CGCC,DX51D
Thickness: 0.11-0.80mm Length: 1600-4500mm
Corrugated: 665-1000mm Zinc Coating: 80-275g/m2
Crest: 16.5mm Pitch: 76.2mm
Colour: White, Red, Blue Or Customized As Per RAL Color Card Application: Container Plate/Construction/roofing Sheet/home Appliance
High Light:

galvanized corrugated sheet

,

corrugated sheet roofing

CGCC, DX51D Zinc Coating white, red, blue PRE PAINTED Corrugated steel Roof Sheets / Sheet

PRE-PAINTED CORRUGATED ROOFING SHEET

Steel Grade: CGCC, DX51D

Thickness: 0.11mm to 0.80mm
Width: Plain 400mm to 1080mm
Corrugated: 665mm to 1000 mm
Length: 1600 to 4500 mm
Zinc Coating: 80 to 275 GSM
Crest: 16.5mm
Pitch: 76.2mm
Waves per Sheet: 12
Color: White, red, blue or customized as per RAL color card


Re:Please enable your specification as detailed as possible before inquiry



Application:

Using hot galvanized sheet and zinciron alloy hot galvanized sheet as the substrate, color coated sheet is made by first going through surface pretreatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester ,silicon modified polyester, highdurability polyester, polyvinylidene fluoride,epoxy and high corrosionresisting coatings have good durability, corrosionresistance and formability. Color coated sheet is widely used in building, Transport, home appliances, solar energy,furniture, etc. In home appliances, it is mainly used as the side door plate of refrigerators,and shell of DVDs, air conditions,freezers,and washing machines.



The classfication of the corrugated plate :





(1)according to the application of the classification - divided into roof panels, wall panels, floor panels and ceiling panels, etc.. The use of color steel plate at the same time to do the wall decoration board, architectural decoration effect is more novel and unique.





(2)according to the height of classification is divided into high wave plate (height = 70mm), wave plate (<70mm wave) and low wave plate (<30mm wave)





(3) according to the classification of the substrate material is divided into galvanized plate, hot galvanized hot-dip aluminum zinc and aluminum plate etc..







(4) according to the classification, divided into structural seam lapping, undercut and buckling structure etc.. The undercut, withhold, wave plate is used as the roof panel requiring high water; overlapping middle and high wave plate galvanized plate with floor plate; low wave plate should be used as wall panel.

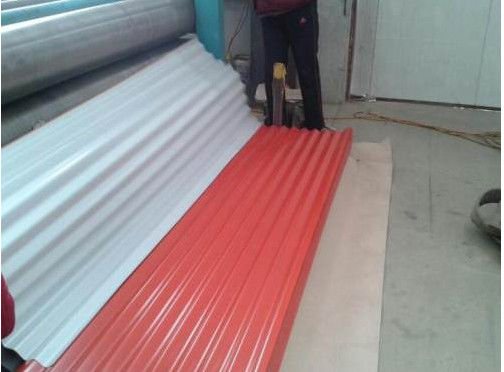

CGCC, DX51D Zinc Coating white, red, blue PRE PAINTED Corrugated Steel Roof Sheets 0

CGCC, DX51D Zinc Coating white, red, blue PRE PAINTED Corrugated Steel Roof Sheets 1

CGCC, DX51D Zinc Coating white, red, blue PRE PAINTED Corrugated Steel Roof Sheets 2CGCC, DX51D Zinc Coating white, red, blue PRE PAINTED Corrugated Steel Roof Sheets 3
