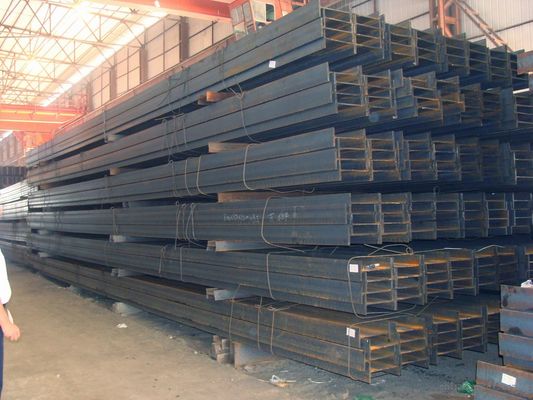

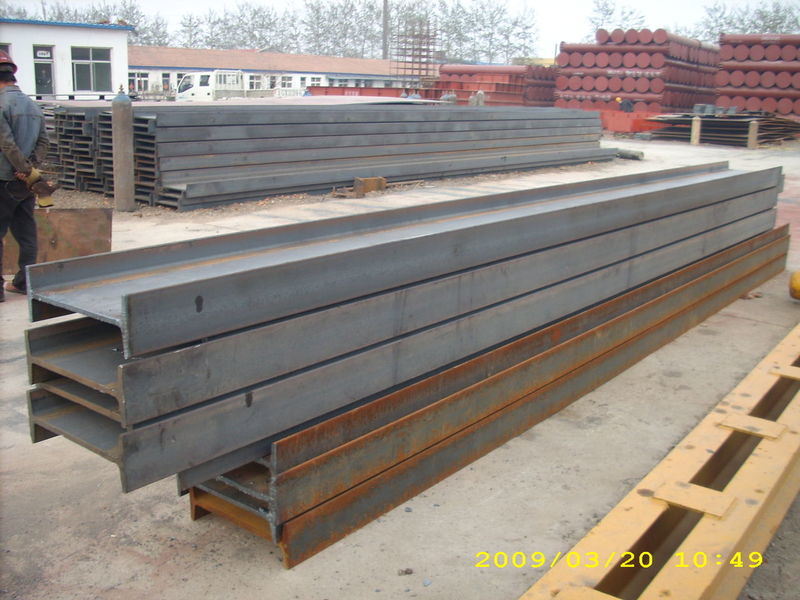

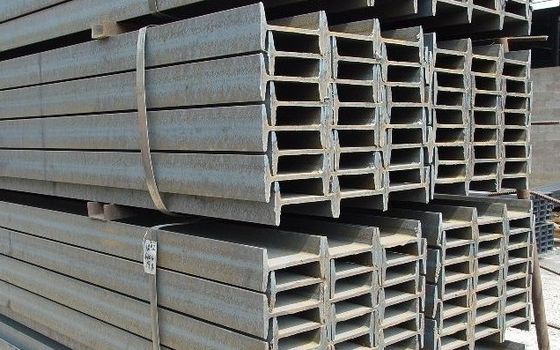

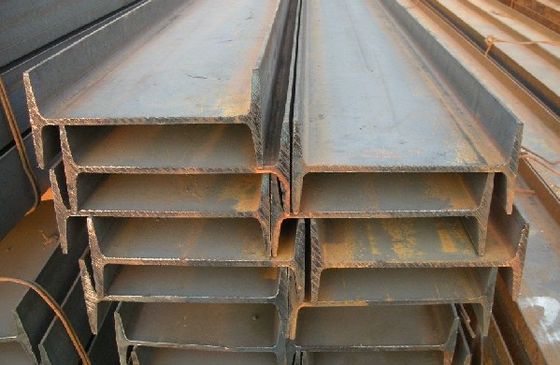

Hot Rolled I Beam

Hot Rolled I Beam factory

Hot Rolled I Beam factory

Hot Rolled I Beam factory

Hot Rolled I Beam factory

Large Image : Hot Rolled I Beam

Product Details:

Place of Origin:	China
Brand Name:	Huaye
Certification:	ISO14000

Payment & Shipping Terms:

Minimum Order Quantity:	50MT
Packaging Details:	standard export packing
Delivery Time:	45 days
Payment Terms:	TT or LC
Supply Ability:	100000

Detailed Product Description

Hot rolled I beam

Technical standard:GB standard, JIS standard, EN standard
Steel grade: A36/Q235/SS400/S235JR/S2 etc.

Size: 10#--40#

Type	Specification(mm)			cross-section area cm²	weight kg/m
Type	Waist height	Leg width	Waist thickness	cross-section area cm²	weight kg/m
10	100	68	4.5	14.3	11.2
12	120	74	5.0	17.8	14.0
14	140	80	5.5	21.5	16.9
16	160	88	6.0	26.1	20.5
18	180	94	6.5	30.6	24.1
20A	200	100	7.0	35.5	27.9
20B	200	102	9.0	39.5	31.1
22A	220	110	7.5	42.0	33.0
22B	220	112	9.5	46.4	36.4
24A	240	116	8.0	47.7	37.4
24B	240	118	10.0	52.6	41.2
27A	270	122	8.5	54.6	42.8
27B	270	124	10.5	60.0	47.1
30A	300	126	9.0	61.2	48.0
30B	300	128	11.0	67.2	52.7
30C	300	130	13.0	73.4	57.4
36A	360	136	10.0	76.3	59.9
36B	360	138	12.0	83.5	65.6
36C	360	140	14.0	90.7	71.2
40A	400	142	10.5	86.1	67.6
40B	400	144	12.5	94.1	73.8
40C	400	146	14.5	102	80.1

Contact: susan@wxhy.com.cn

Tag : I beam , I Channel, steel I beam
