Detailed Product Description

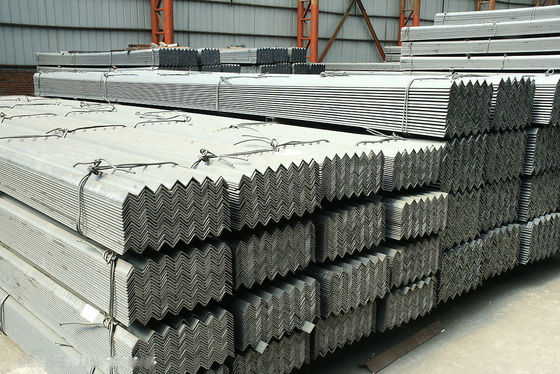

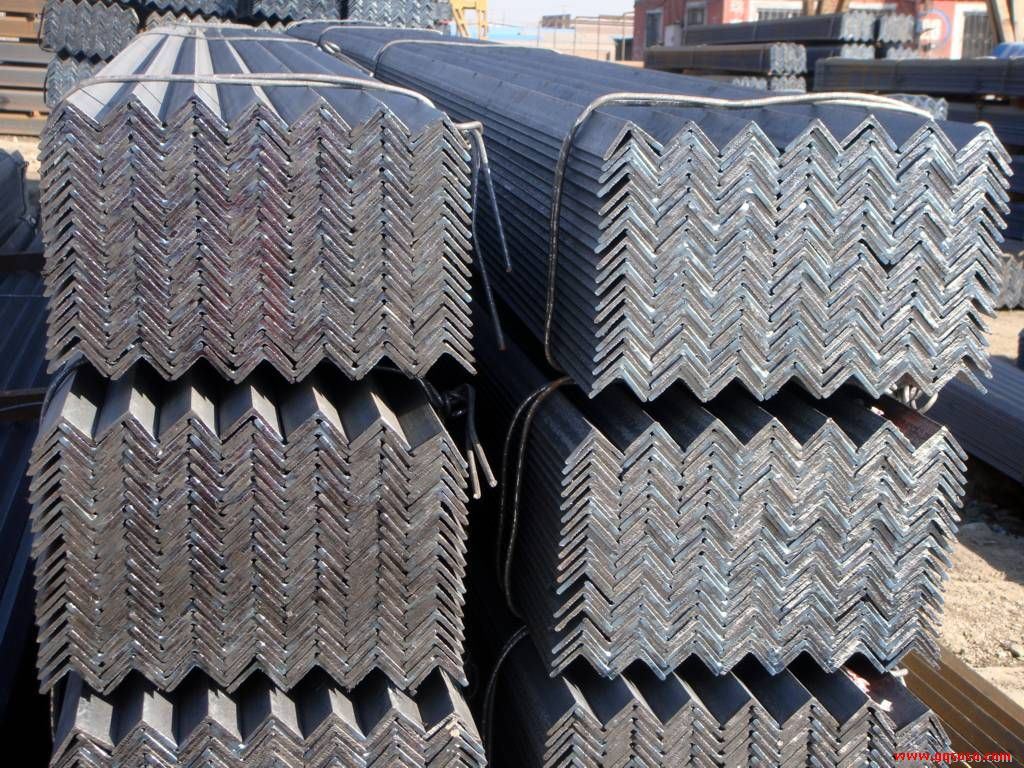

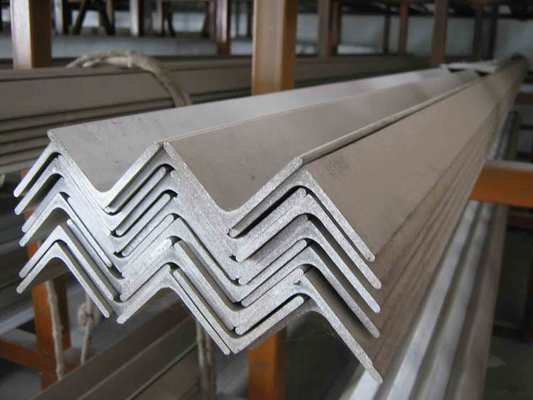

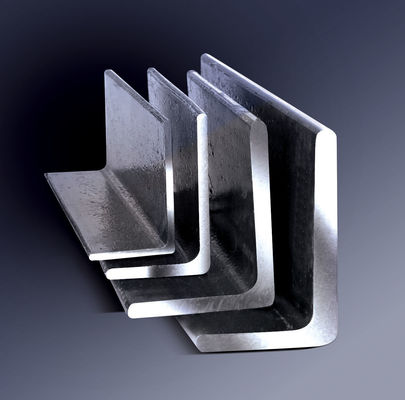

Structural Equal Angle Steel
Steel Grade:GB: Q195, Q215, Q235A-D, Q345A-D, Q420A-E
EN:St 37-2, St 52-3, S185, S235JR, S235J0, S355JR, S355JO, S355J2, S355NL
ASTM: A36, Gade B, Grade C, Grade D, Grade 50
JIS: SS300, SS400, SPFC590
Dimesions:25x25x3mm -200x200x20mm
Thickness: 3mm-20mm
Length:3m - 13m
Chinese standard (GB/T9787--1988):
|
Dimension (mm)
|
Weight (kg/m)
|
Dimension (mm)
|
Weight (kg/m)
|
Dimension (mm)
|
Weight (kg/m)
|
|
25*3
|
1.124
|
75*5
|
5.818
|
125*8
|
15.504
|
|
25*4
|
1.459
|
75*6
|
6.905
|
125*10
|
19.133
|
|
30*3
|
1.373
|
75*7
|
7.976
|
125*12
|
22.696
|
|
30*4
|
1.786
|
75*8
|
9.03
|
125*14
|
26.193
|
|
40*3
|
1.852
|
75*10
|
11.089
|
140*10
|
21.488
|
|
40*4
|
2.422
|
80*6
|
7.376
|
140*12
|
25.522
|
|
40*5
|
2.976
|
80*8
|
9.658
|
140*14
|
29.49
|
|
50*4
|
3.059
|
80*10
|
11.874
|
160*12
|
29.391
|
|
50*5
|
3.77
|
90*8
|
10.946
|
160*14
|
33.987
|
|
50*6
|
4.465
|
90*10
|
13.476
|
160*16
|
38.518
|
|
60*5
|
4.57
|
90*12
|
15.94
|
160*18
|
48.634
|
|
60*6
|
5.42
|
100*6
|
9.366
|
180*12
|
33.159
|
|
63*5
|
4.822
|
100*8
|
12.276
|
180*14
|
38.383
|
|
63*6
|
5.721
|
100*10
|
15.12
|
180*16
|
43.542
|
|
63*8
|
7.469
|
100*12
|
17.898
|
180*18
|
48.634
|
|
70*5
|
5.397
|
110*8
|
13.532
|
200*14
|
42.894
|
|
70*6
|
6.406
|
110*10
|
16.69
|
200*16
|
48.68
|
|
70*7
|
7.398
|
110*12
|
19.782
|
200*18
|
54.401
|
|
70*8
|
8.373
|
110*14
|
22.809
|
200*20
|
60.056
|
